UNITY Barcode Scanner Module
The UNITY Bar Code Scanner module provides our InFLEX screens with high-speed bar code scanning capabilities for different types of applications. It is installed behind and at the edge of our InFLEX screens by removing the protective cover and sliding it into a micro-USB port and secured with 2 screws.
FEATURES
- Excellent reading performance
- Maximum reading distance can exceed 2.5 meters
- 1 Mega Pixel global camera supporting 3 mil barcodes
- 1D: UPC-A，UPC-E, EAN-8，EAN-13，Code128，GS1-128，Code39，Code32,Code 93, Code11, Interleaved2of5，Matrix2of5，Industrial2of5(Straight2of5)， Standard2of5 (IATA2of5）,Codabar（NW-7），MSI，GS1 Databar (Omnidirectional), Limited, Expanded)，ChinaPost, Tepepen, Febraban, GS1 Composite.
- 2D: QRCode, MicroQRCode,DataMatrix，PDF417, MicroPDF417，MaxiCode, Aztec，HanXinCode

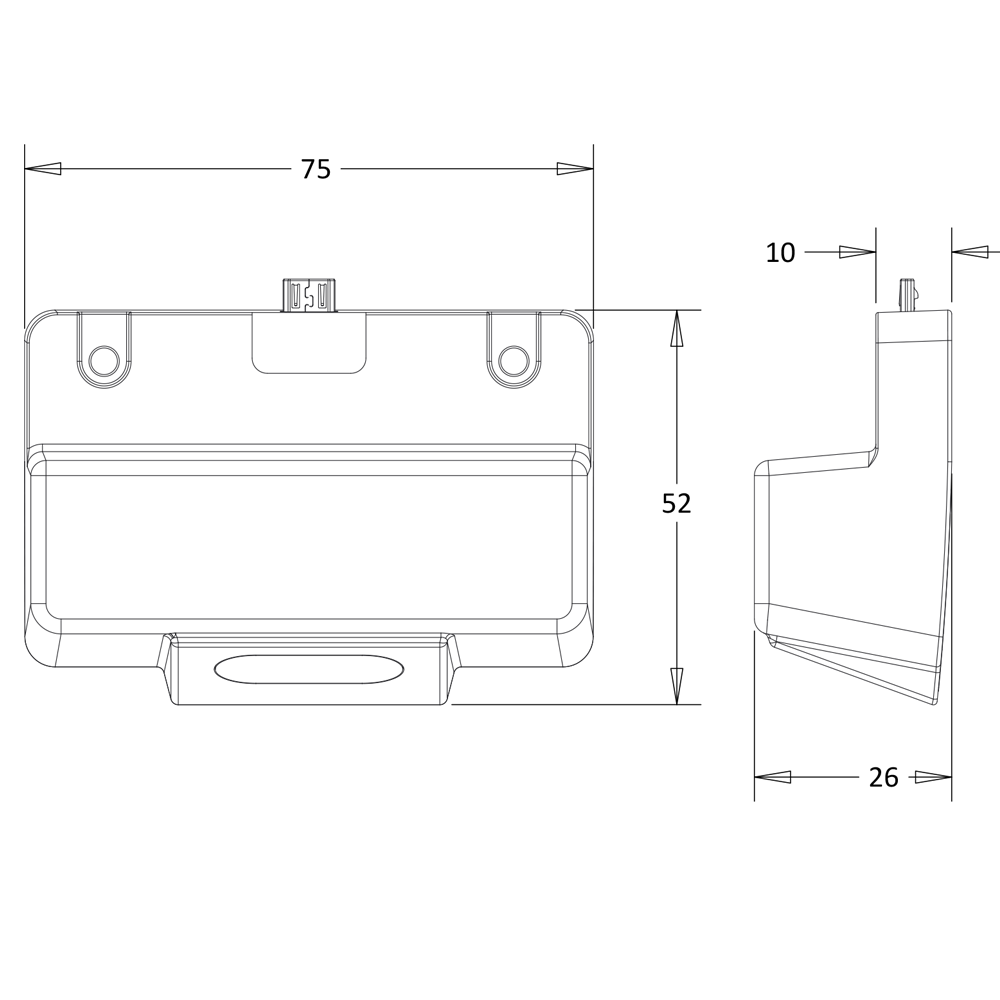

Download Data Sheet & Monitor Dimensions
SKU: 40ESBC1002
Page updated 9/25 2024
