INSTORESCREEN

InCap 480

Commercial grade stretch screen monitor with integrated antiglare coating targeted for aisle header displays and is easily mounted on Lozier or Madix gondolas.

FEATURES

Hardened antiglare glass for easy cleaning

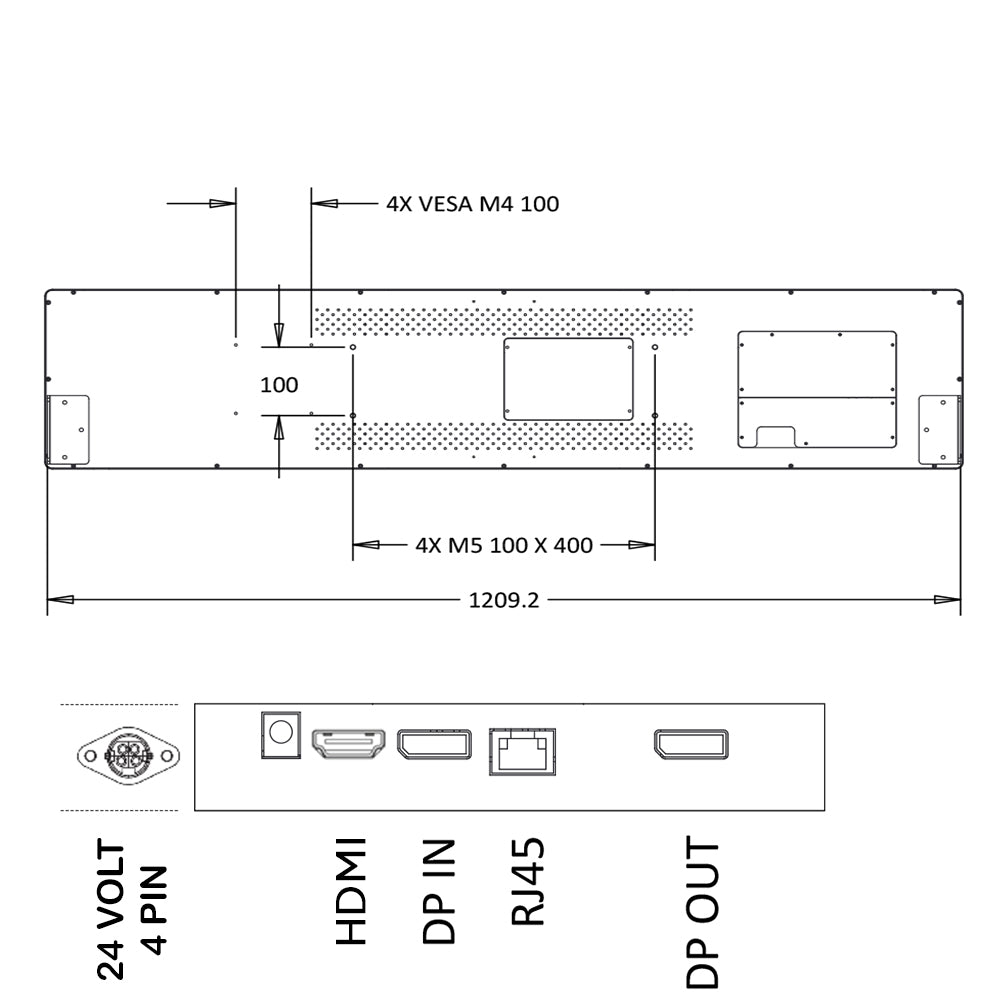

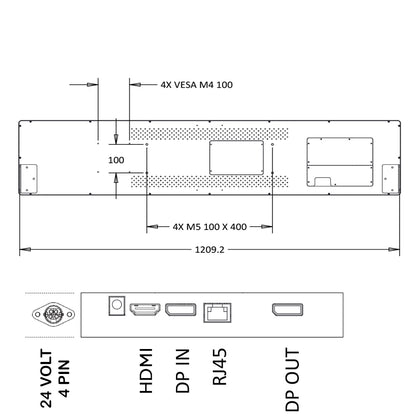

Optional Lozier/Madix brackets or VESA 400 x 100 (M5)
HDCP compliant DP or HDMI input
Display resolution 1920 x 360 pixels
Sturdy metal chassis construction

Page updated 8/22 2024

Need help?

Pairs well with

Product details

MONITOR SPECIFICATIONS

Resolution

1920 x 360 pixels

Brightness

700 cd/m2

Viewing area

1196 x 226.4 mm

Aspect ratio

16:3

Contrast ratio

1200:1

Viewing angle

89/89/89/89 degrees

Refresh rate

60/30 Hz

Color support

16.7 million

Touch technology

N/A

Protective glass

Tempered glass

Led backlight

30 000 hours

Mtbf

50 000 hours

UNIT SPECIFICATIONS

Power consumption

80W

Power input

4 Pin DIN Male connector. 24V

Mounting options

VESA 400 x 100 mm M5 L 15 mm

Touch interface

N/A

Video ports

HDMI or Display Port

Data ports

Display Port

Osd settings

Buttons

Unit color

Black

Unit dimensions

1216 x 262.6 x 54.5 mm

Unit weight

13.5 kg

Operating temperature

10°C to 50°C / 50°F to 122°F

Operating humidity

10% to 80%, relative

Shipping dimensions

1300 x 470 x 120 mm

Shipping weight

15 kg

Storage temperature

-20°C to 60°C / -4°F to 140°F

Storage humidity

10% to 80%, relative

IN THE BOX

Unit

inCap480

Power supply

AC 110 - 240V to DC 24V

Power cable

US C5 power cable 1.5 m

CERTIFICATIONS

Certification unit

CE, FCC, ROHS, UL, CCC, RSA

WARRANTY

Full warranty information

Warranty standard

3-year return to depot

Warranty extended

Optional
