Product details

MONITOR SPECIFICATIONS
Display size
10.1 inches
Resolution
1280 x 800 pixels
Brightness
300 cd/m2
Viewing area
218 x 136.6 mm
Aspect ratio
16:10
Contrast ratio
1000:1
Viewing angle
89/89/89/89 degrees
Refresh rate
60/30 Hz
Response time
30 ms
Color support
16.7 million
Touch technology
10 Point PCAP
Protective glass
Tempered and Anti-microbial
Led backlight
15 000 hours
Mtbf
50 000 hours
UNIT SPECIFICATIONS
Power consumption
8W
Power input
USB C PD (SPR) 5V, 9V, 15V, and 20V

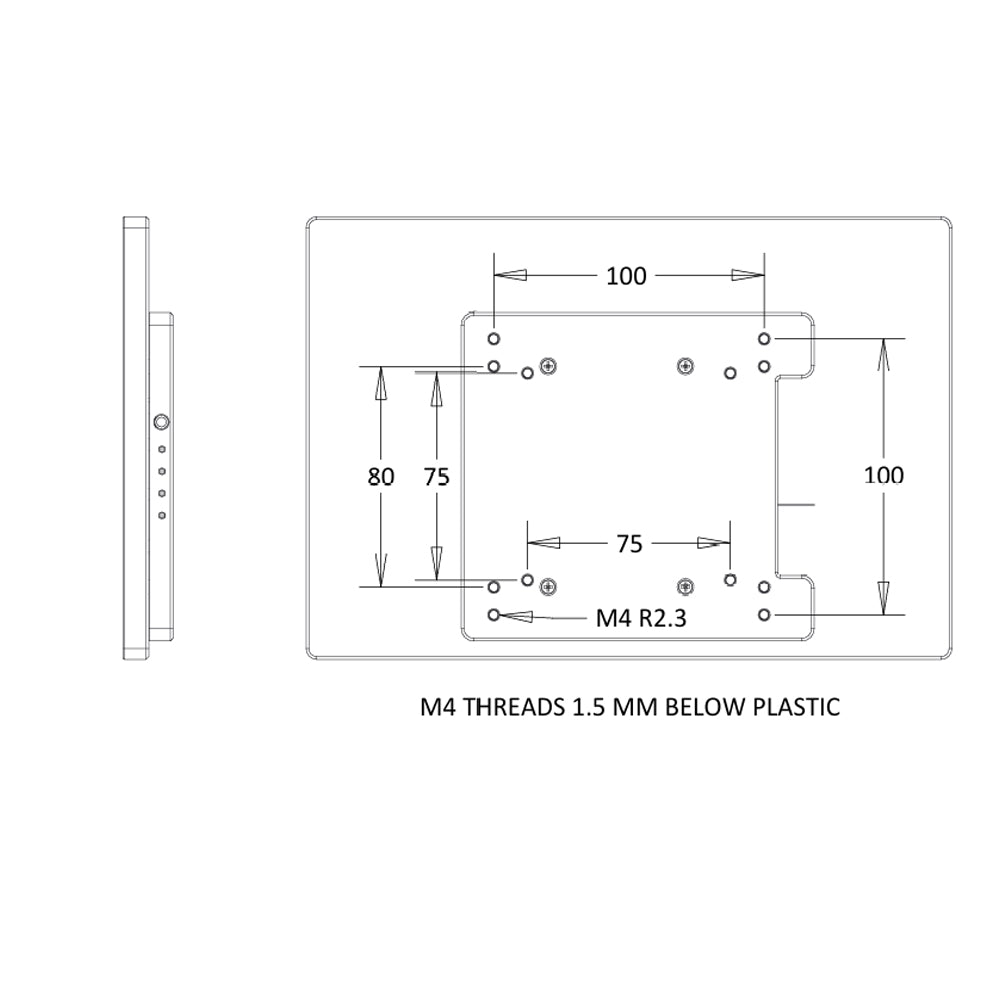

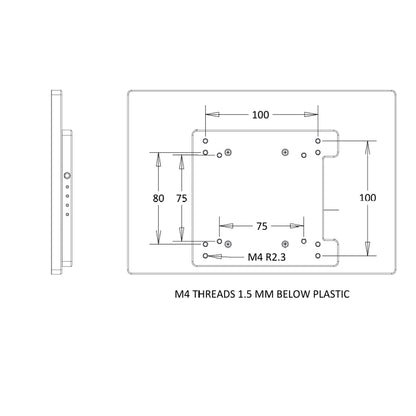

Mounting options
VESA 75 x 75 or 100 x 100 mm M4 thread
Touch interface
Middle USB C

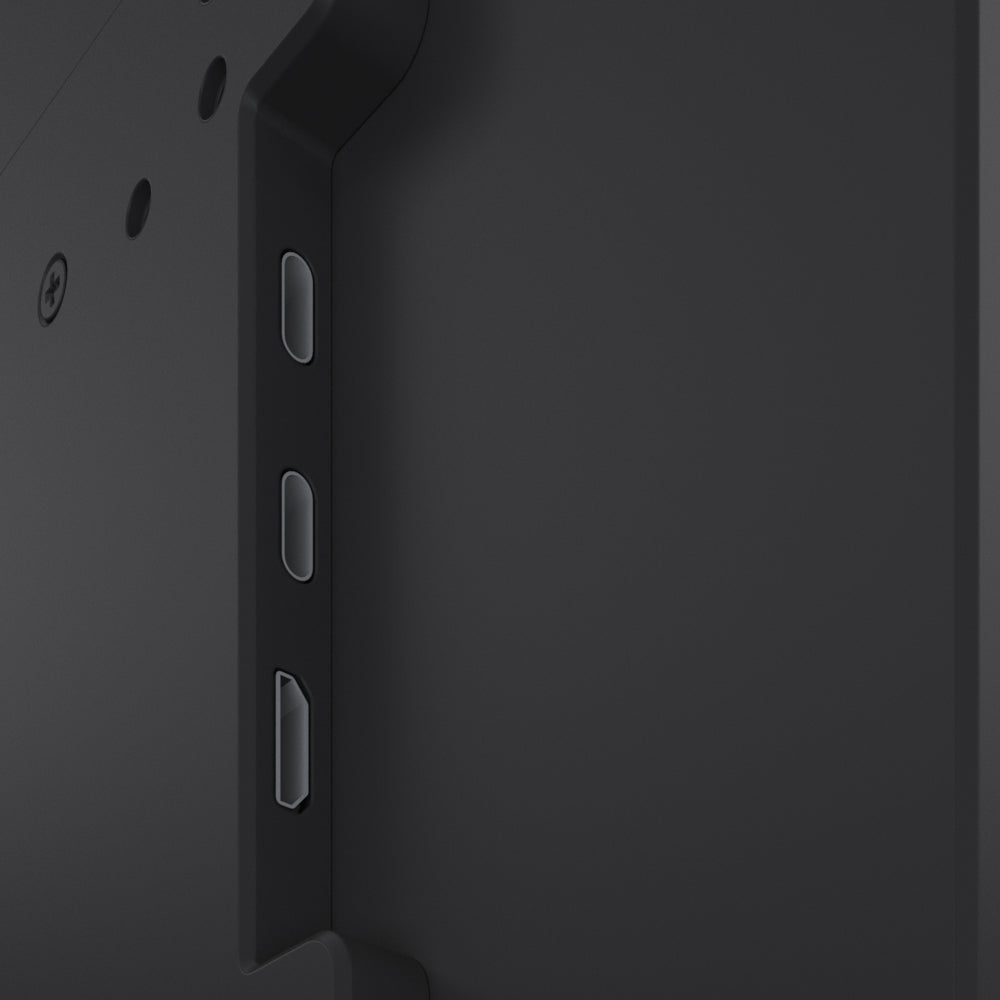

Video ports
Mini HDMI or middle USB C
Data ports
Middle USB C
Osd settings
OSD touch and buttons
Unit color
Black

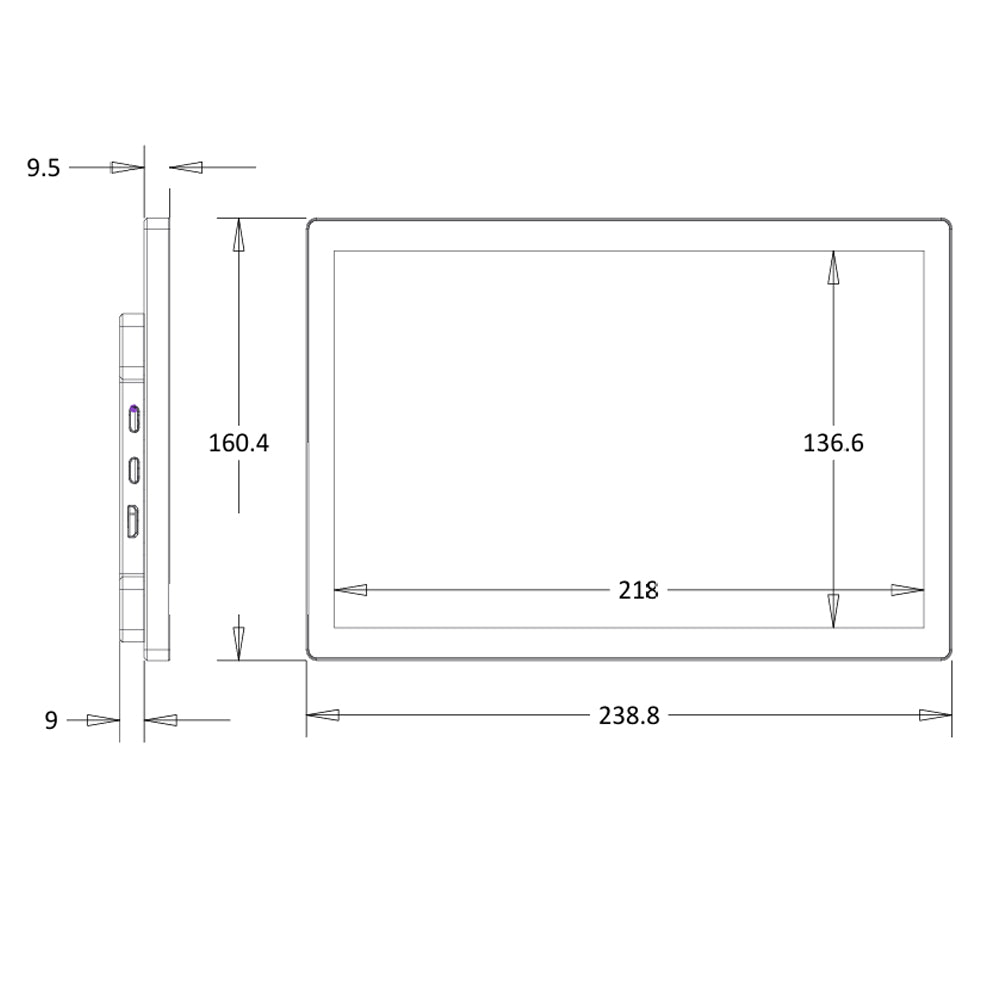

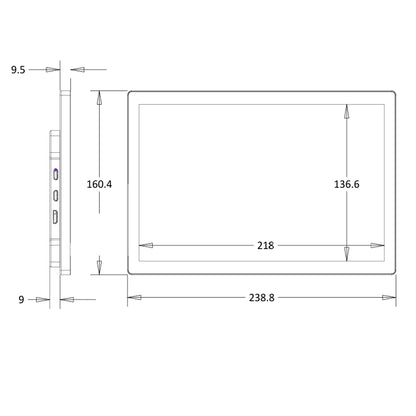

Unit dimensions
241.3 x 162.9 x 18.5 mm
Unit weight
0.8 kg
Operating temperature
10°C to 40°C / 50°F to 104°F
Operating humidity
20% to 80%, relative
Shipping dimensions
300 x 220 x 55 mm
Shipping weight
1.2 kg
Storage temperature
-20°C to 60°C / -4°F to 140°F
Storage humidity
0% to 95%, relative
IN THE BOX
Unit
inTouch101
Video cables
USB-C To USB-C Gen 2
Touch cables
Not included
Power supply
Not included
Power cable
Not included
CERTIFICATIONS
Certification unit
CE, FCC, ROHS, UL, CCC, RSA
WARRANTY

Full warranty information

Warranty standard
3-year return to depot
Warranty extended
Optional
